Images may be representations. Actual product may vary.
| Core Size: | 22.32 x 20.35 x 2 |
| Tube Size: | 1.5" (ExtremeCool) |
| Rows: | 1 |
| Overall Size: | 29.63 X 22 |
| Flow Direction: | CrossFlow |
| Inlet / Outlet: | Top Driver / Bottom Passenger |
| Trans Cooler: | No (N/A) |
| Application: | LT1 and LT4 Next Generation GM V8 |
| Important Note: | 6th and 7th Gen Camaro |
| Fan Size: | Twin 11 (in) 1864 CFM total |
| Total Thickness: | 4.32 (Rad + Fan) |
| Availability: | In Stock |

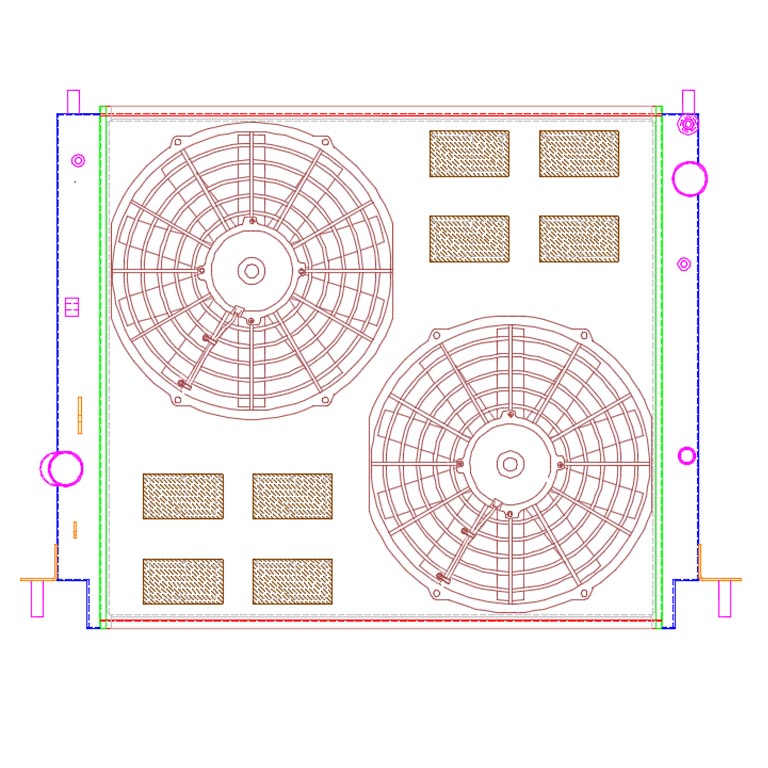

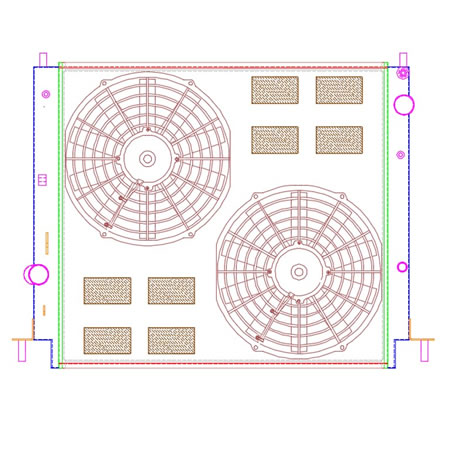

A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
