Images may be representations. Actual product may vary.
| Core Size: | 28.38 x 18.53 x 2.68 |
| Tube Size: | 1.25" (MegaCool) |
| Rows: | 2 |
| Overall Size: | 33.5 x 18.71 |
| Flow Direction: | CrossFlow |
| Inlet / Outlet: | Top Driver / Bottom Passenger |
| Trans Cooler: | Yes (5/16 (in) Inverted Flare) |
| Application: | GM Truck Large Small Block radiator |
| Fan Size: | Twin 12 (in) 1734 CFM total |
| Total Thickness: | 5.58 (Rad + Fan) |
| Availability: | In Stock |

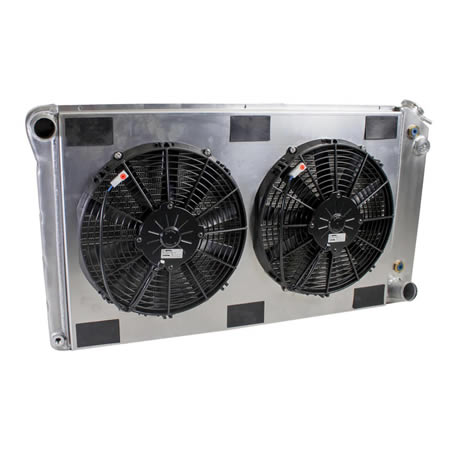

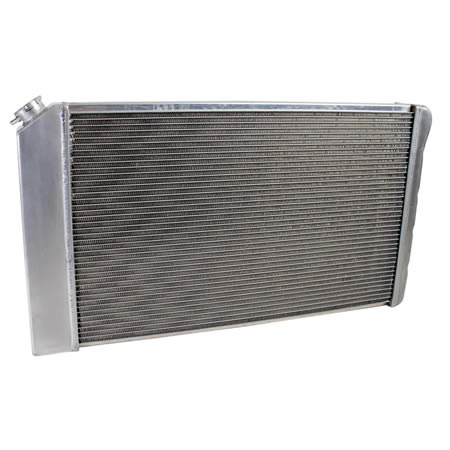

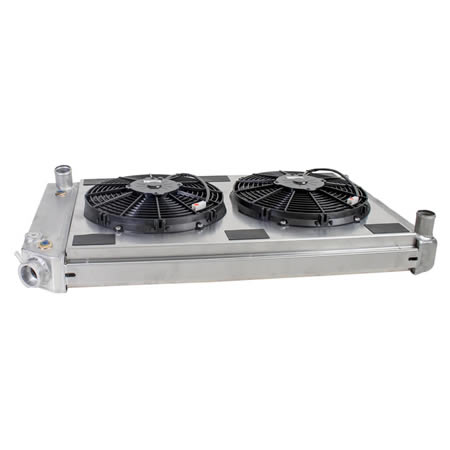

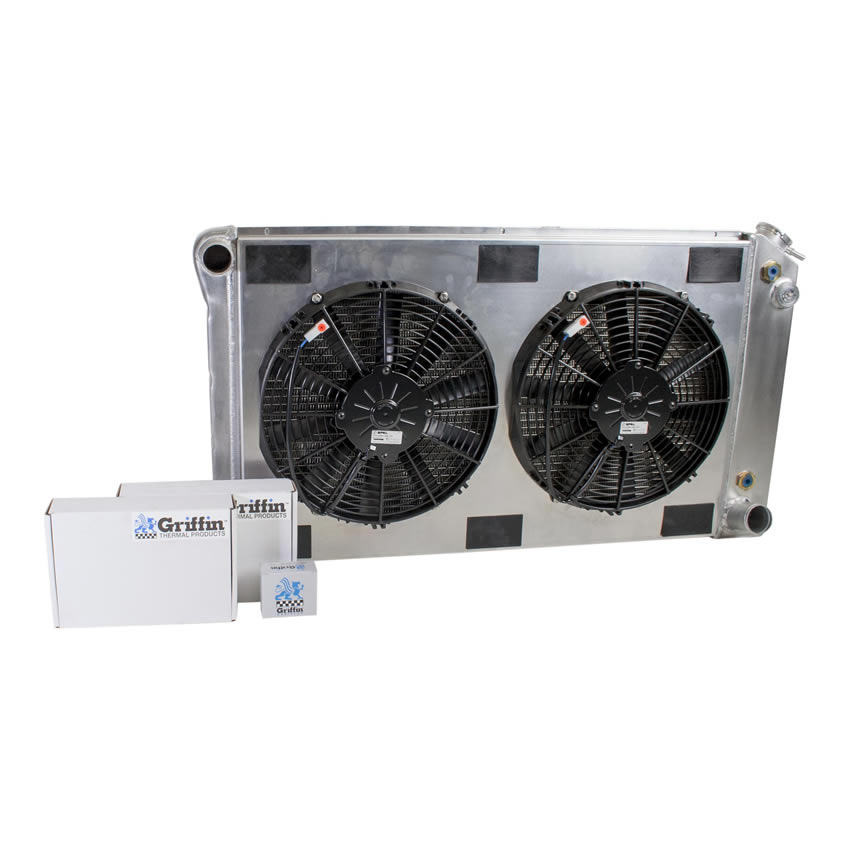

A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
