Images may be representations. Actual product may vary.
| Core Size: | 22.75 x 17 x 2.68 |
| Tube Size: | 1.25" (MegaCool) |
| Rows: | 2 |
| Overall Size: | 23 x 24 |
| Flow Direction: | DownFlow |
| Inlet / Outlet: | Top Passenger / Bottom Passenger |
| Trans Cooler: | Yes (1/4 (in) NPT) |
| Application: | Mopar A Body OEM 6 plus Rare V8 |
| Important Note: | OEM 6 Cylinder Design But will Fit Rare 8Cyl |
| Fan Size: | Twin 10 (in) 1694 CFM total |
| Total Thickness: | 6.27 (Rad + Fan) |
| Availability: | In Stock |

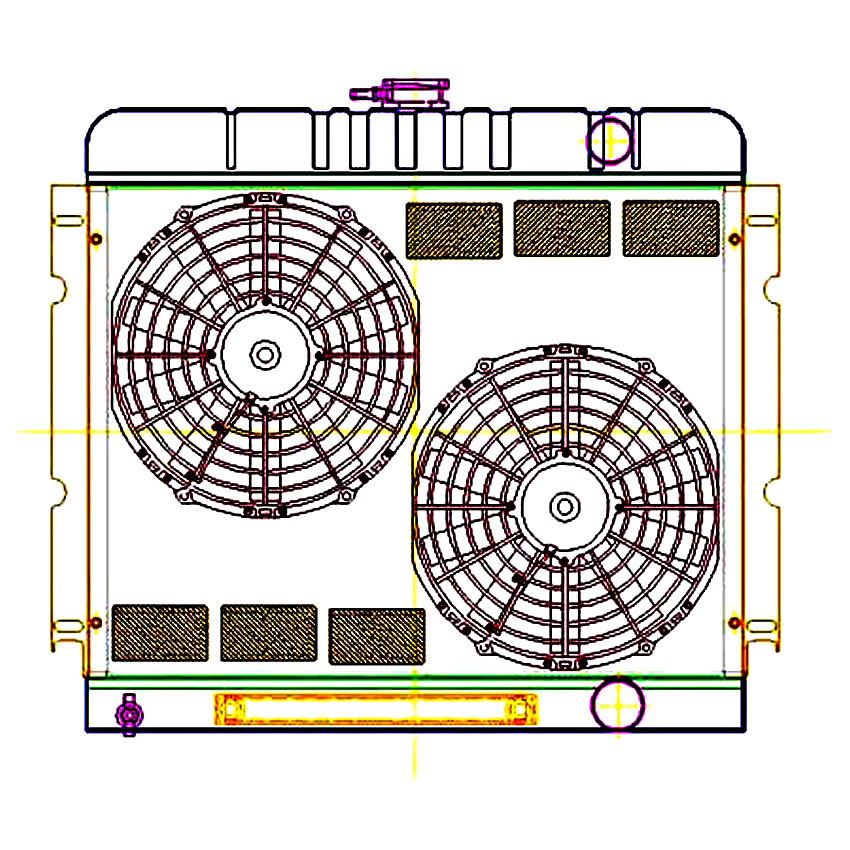

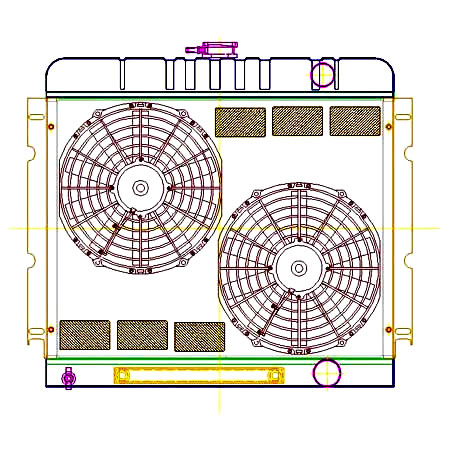

A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
