Images may be representations. Actual product may vary.
| Core Size: | 23.75 x 15 x 2.68 |
| Tube Size: | 1.25" (MegaCool) |
| Rows: | 2 |
| Overall Size: | 25.56 x 20.5 |
| Flow Direction: | DownFlow |
| Inlet / Outlet: | Top Passenger / Bottom Passenger |
| Trans Cooler: | Yes (5/16 (in) Inverted Flare) |
| Application: | GM Early Outlets |
| Fan Size: | Twin 10 (in) 1694 CFM total |
| Total Thickness: | 5.87 (Rad + Fan) |
| Availability: | In Stock |

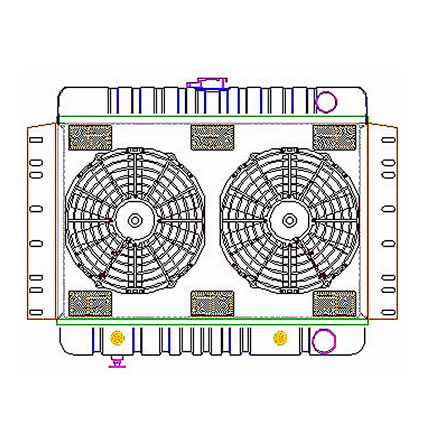

A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
