Images may be representations. Actual product may vary.
| Core Size: | 17.38 x 22 x 2.68 |
| Tube Size: | 1.25" (MegaCool) |
| Rows: | 2 |
| Overall Size: | 17.38 x 28 |
| Flow Direction: | DownFlow |
| Inlet / Outlet: | Top Center / Bottom Passenger |
| Trans Cooler: | Yes (1/8 (in) NPT) |
| Application: | GM Early Outlets |
| Fan Size: | Twin 10 (in) 1694 CFM total |
| Total Thickness: | 5.87 (Rad + Fan) |
| Availability: | In Stock |

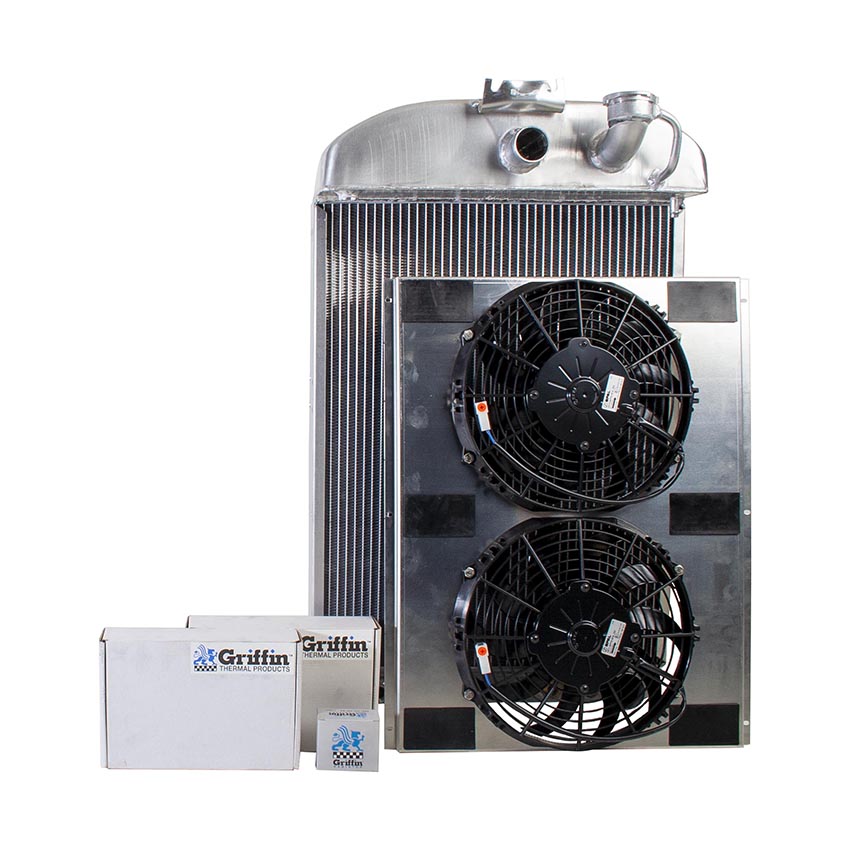

A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
