| Core Size: | 28.25 x 18.75 x 2.68 |
| Tube Size: | 1.25" (MegaCool) |
| Rows: | 2 |
| Overall Size: | 30.25 x 23.63 |
| Flow Direction: | DownFlow |
| Inlet / Outlet: | Top Passenger / Bottom Passenger |
| Trans Cooler: | Yes (1/4 (in) NPT) |
| Application: | Big Block Mopar "B" Body All |
| Fan Size: | Twin 12 (in) 1734 CFM total |
| Total Thickness: | 6.07 (Rad + Fan) |
| Availability: | In Stock |

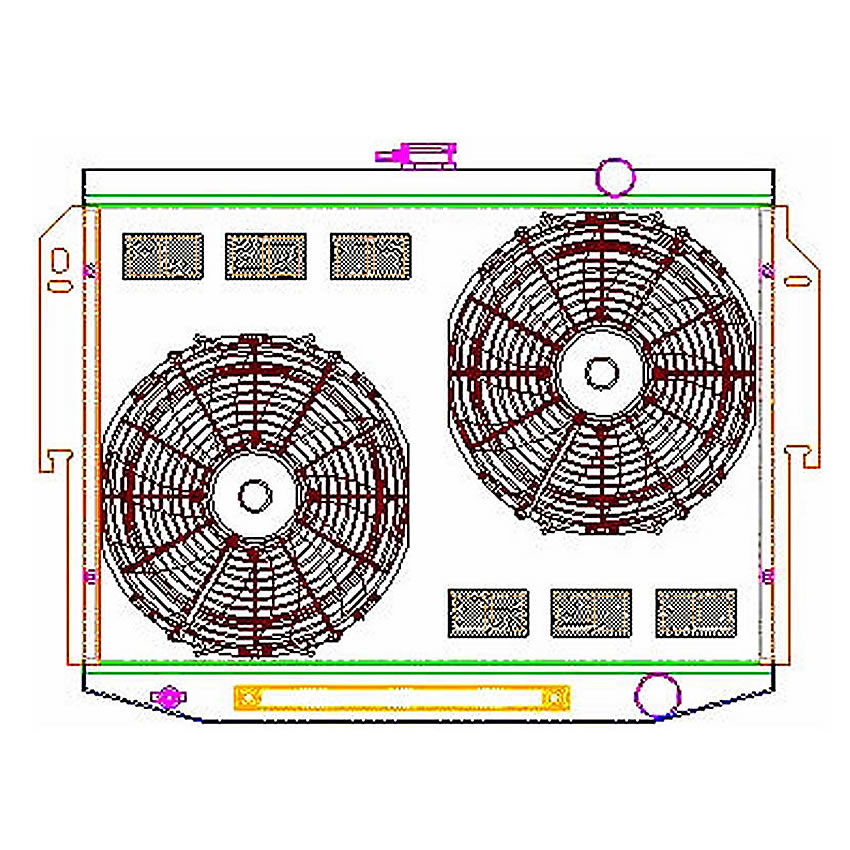

A "one stop shop" for all of your cooling needs. We have paired this radiator with a high performance electric fan and a hand formed aluminum fan shroud. This ensures optimal airflow across the entire core surface area.
